HD Katov UH4000-20N 4K Ultra HD AI Tracking PTZ Camera

HD Katov UH4000-20N 4K Ultra HD AI Tracking PTZ Camera

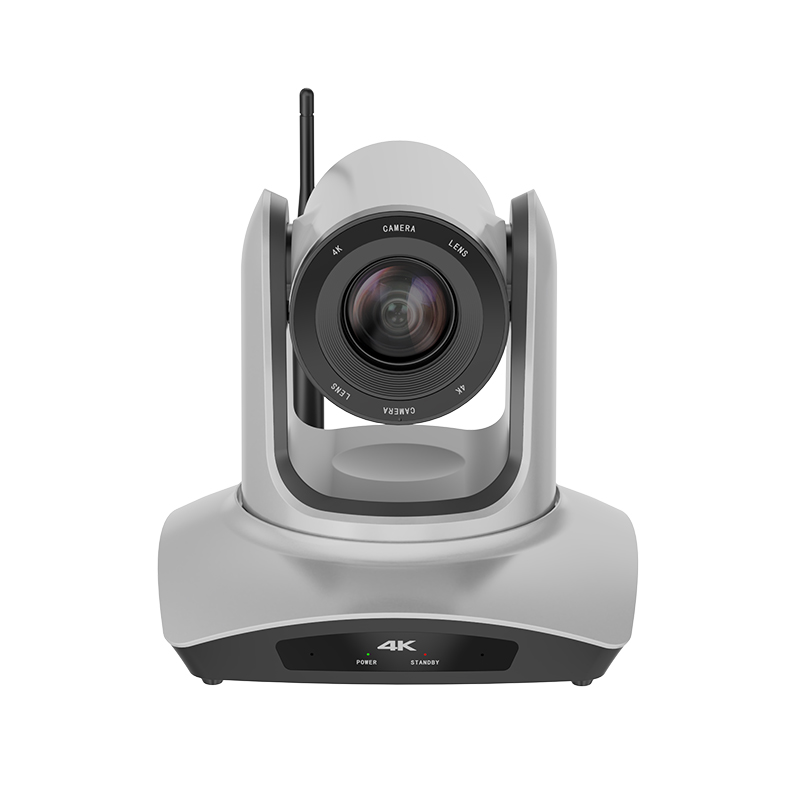

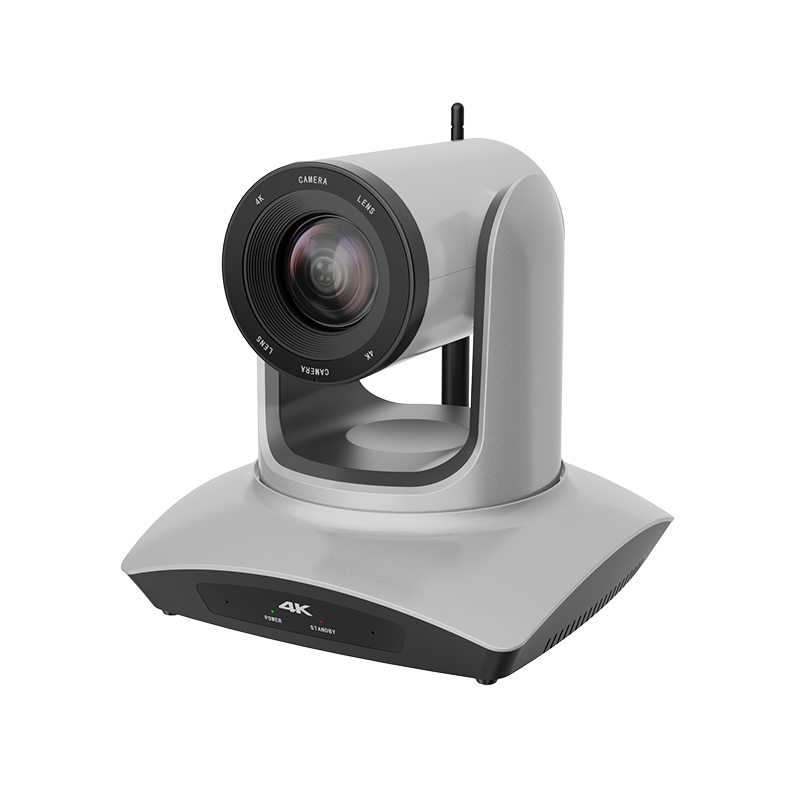

The HD Katov UH4000-20N represents a massive leap forward in automated, high-definition multi-interface video capture. Centered around a highly precise 8.50-megapixel SONY imaging sensor, this PTZ camera handles multi-camera coordination with ease, using built-in PoE (802.3af) to receive power, stream video data, and receive camera control vectors down a single standard network drop. It is engineered to give single-operator setups full control, allowing seamless programming and recall of up to 255 discrete preset locations via standard joystick controllers or network software.

Where the UH4000-20N stands out is its deep integration of AI-driven subject workflows and intelligent privacy controls. The onboard human tracking system doesn’t just passively trace movement; it actively differentiates between multi-person interactions, speaker movements across custom preset zones, and simple hand gesture commands, ensuring smooth pan/tilt framing adjustments. Combined with smart face privacy protection filters and automated protocol sensing (VISCA Over IP, Pelco-P/D, ONVIF), it delivers a flexible, robust capturing solution that easily slots into complex live streams, professional video switchers, or overhead studio configurations.

Native 4K Ultra HD Clarity at 30fps
Built around a premium SONY 1/2.8” Progressive CMOS sensor (8.50 Megapixels), delivering crisp 4K (3840×2160) video at a smooth 30fps to capture intricate, true-to-life studio and auditorium details.

High-Power 20x Optical Zoom Lens
Equipped with an ultra-wide angle 4K optical lens system featuring a 20x lossless optical zoom range and 16x digital zoom, covering everything from sprawling wide panoramas (58.7° FOV) to clear close-ups.

New-Gen Multi-Mode AI Human Tracking
Utilizes cutting-edge AI tracking algorithms to offer dedicated Single-Person, Zone-Specific, Hybrid, and Multi-Person tracking modes that automatically lock on, pan, and tilt without manual camera operator intervention.

Lossless Low-Latency NDI®|HX2 Integration
Supports the high-efficiency NDI®|HX2 network transmission standard, allowing crisp, professional-grade 4K stream video routing over a single Ethernet cable while drastically saving gigabit network bandwidth.

Simultaneous Multi-Interface Outputs

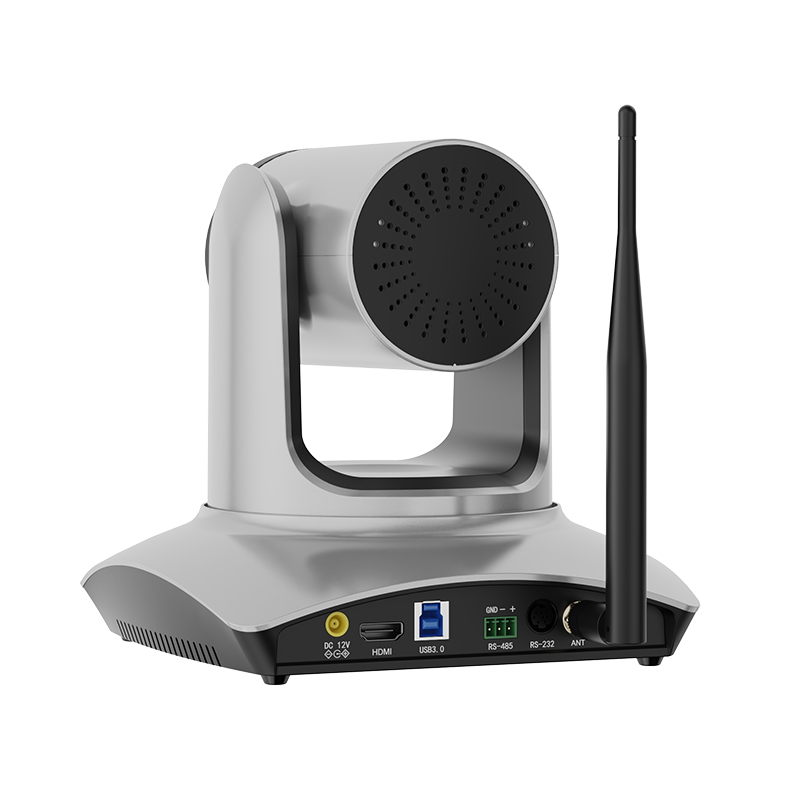

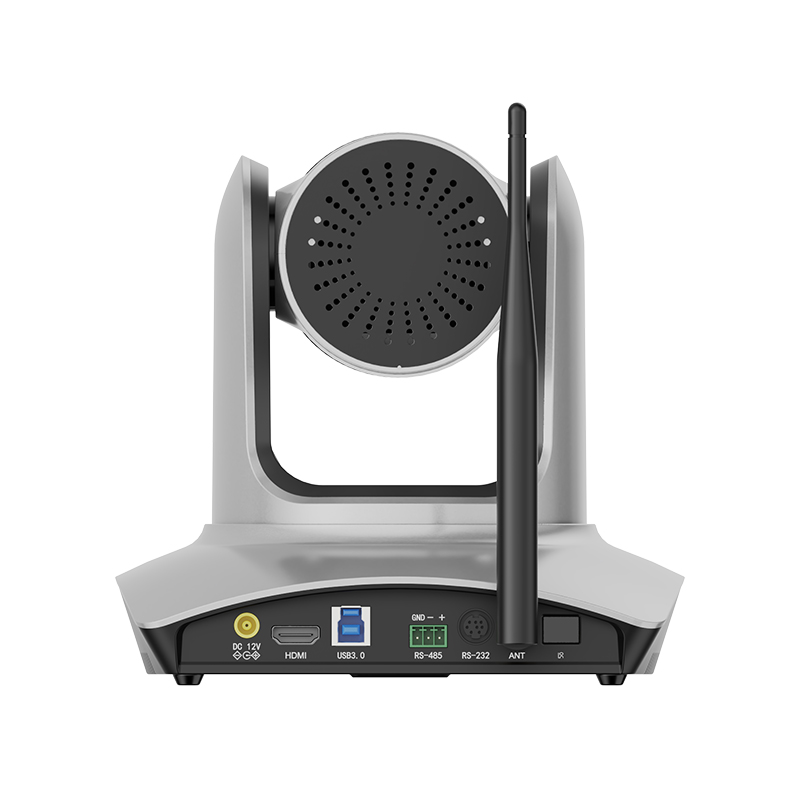

Offers fully populated, concurrent baseband and IP signal outputs—including HDMI, 3G-SDI, high-speed USB 3.0, and a LAN network port for seamless multi-destination video routing.

Advanced 2D & 3D Noise Suppression
Employs a low-light sensor matrix combined with 2D/3D digital noise reduction to maintain a massive signal-to-noise ratio ($\ge 50\text{dB}$), ensuring extremely clean image plates even in poorly lit or dimmed environments.

Integrated Front Tally Status Indicator
Features a built-in front Tally display light, instantly alerting on-screen talent or pastors when the camera is actively live or previewed in a multi-camera broadcast pipeline.

FreeD Protocol for AR/VR Virtual Production
Supports native output of the FreeD camera positioning protocol over your network link, piping real-time physical telemetry straight to advanced AR/VR virtual production engines without external mechanical encoders.
